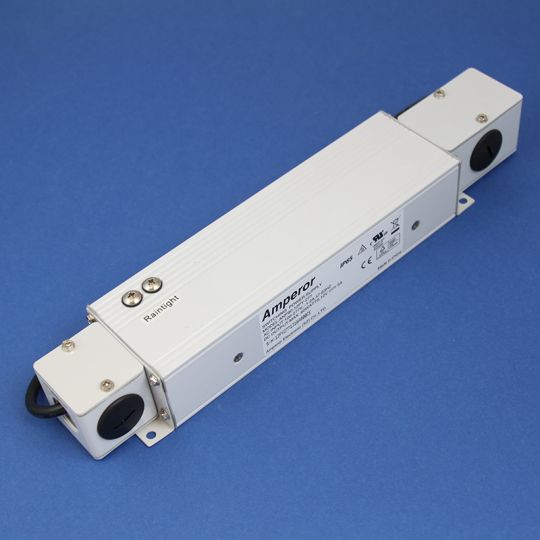

96W, 48V LED Power Supply w Wiring Chambers 277V

ANP90-48P1Y-277

96W, 48V LED Power Supply w Wiring Chambers 277V
Processing...
AmperorDirect Price: $91.54

Standard US shipping included (We ship internationally daily)


This LED driver has pre-installed wiring chambers.


Qty

Product Description

•••••

Description

ANP90-48P1Y-277 is Amperor's 96W, universal input, rugged, Class 2 switching mode LED power supply with wiring chambers. This LED family features Highly Efficient Switching-Mode Technology, Active Power Factor Corrected (PFP), Silicone encapsulated which makes it perfect for wet locations. Its’ tough extruded aluminum case ensures the ANP90 will handle all of your rugged outdoor or indoor lighting needs. This features and capabilities make the ANP90-48P1Y-277 a 24-7 all weather solution for your sign illumination, backlighting, architectural, step and border lighting needs. Other applications include, High Bay, Garage, Parking Lot, Sign, Medical Lighting applications and security cameras with integrated lighting .



The single class 2 channel, +48V output ANP90-48P1Y has the industry's top rated thermal performance, guaranteed to output at full load between -30~70 degrees C. The characteristic of non-de-rated output power up to 70 degrees C makes it cost efficient for LED system developers. Multiple power supplies are not required in order to maintain the same level of LED output in a high temperature location. Furthermore, the ANP90-48P1Y-277 has a built-in, active power factor correction (PFC) capability. Along with an 85% + efficiency level, it is proven to be an environment friendly solution.



Features

  • Universal AC Input
  • High Efficiency Rating
  • Fantastic Thermal Performance
  • Class II
  • Built for Outdoor / Indoor, Wet / Dry location
  • Active Power Factor Correction (PFC) Capability
  • Built-in Protection Circuitry
  • Long MTBF
  • RoHS complient
  • UL1310, IP65, UL879 (SAM), EN60950-1, TUV, CE, FCC Certified



Specifications

  • Dimensions (w/o wiring chambers): 200mm (l) x 60mm (w) x 43mm (h)
  • Input voltage : 90 to 305 VAC, 47 to 63 Hz
  • Efficiency: > 85% (Typical)
  • Output: +48V @ 3.2A
  • # of output channels: 1
  • Output mode: C.V. (Constant Voltage) mode
  • Max. Output power: 96W
  • Operating ambient: -40°c to 70°c
  • MTBF: 100,000 hours @ 25°c
  • For mechanical drawing and other specifications, click here to see the detailed datasheet.



Inquiry for Bulk Buying or Custom Requests

ANP90 series LED power supply can be configured to output different voltages. Please EMAIL AmperorDirect Support Team or call 281-664-1209 for details.



Go Back to Open Frame Product Table



Description

ANP90-48P1Y-277 is Amperor's 96W, universal input, rugged, Class 2 switching mode LED power supply with wiring chambers. This LED family features Highly Efficient Switching-Mode Technology, Active Power Factor Corrected (PFP), Silicone encapsulated which makes it perfect for wet locations. Its’ tough extruded aluminum case ensures the ANP90 will handle all of your rugged outdoor or indoor lighting needs. This features and capabilities make the ANP90-48P1Y-277 a 24-7 all weather solution for your sign illumination, backlighting, architectural, step and border lighting needs. Other applications include, High Bay, Garage, Parking Lot, Sign, Medical Lighting applications and security cameras with integrated lighting .



The single class 2 channel, +48V output ANP90-48P1Y has the industry's top rated thermal performance, guaranteed to output at full load between -30~70 degrees C. The characteristic of non-de-rated output power up to 70 degrees C makes it cost efficient for LED system developers. Multiple power supplies are not required in order to maintain the same level of LED output in a high temperature location. Furthermore, the ANP90-48P1Y-277 has a built-in, active power factor correction (PFC) capability. Along with an 85% + efficiency level, it is proven to be an environment friendly solution.



Features

  • Universal AC Input
  • High Efficiency Rating
  • Fantastic Thermal Performance
  • Class II
  • Built for Outdoor / Indoor, Wet / Dry location
  • Active Power Factor Correction (PFC) Capability
  • Built-in Protection Circuitry
  • Long MTBF
  • RoHS complient
  • UL1310, IP65, UL879 (SAM), EN60950-1, TUV, CE, FCC Certified



Specifications

  • Dimensions (w/o wiring chambers): 200mm (l) x 60mm (w) x 43mm (h)
  • Input voltage : 90 to 305 VAC, 47 to 63 Hz
  • Efficiency: > 85% (Typical)
  • Output: +48V @ 3.2A
  • # of output channels: 1
  • Output mode: C.V. (Constant Voltage) mode
  • Max. Output power: 96W
  • Operating ambient: -40°c to 70°c
  • MTBF: 100,000 hours @ 25°c
  • For mechanical drawing and other specifications, click here to see the detailed datasheet.



Inquiry for Bulk Buying or Custom Requests

ANP90 series LED power supply can be configured to output different voltages. Please EMAIL AmperorDirect Support Team or call 281-664-1209 for details.



Go Back to Open Frame Product Table



Shipping Information

Shipping Weight: 3.50 Pounds
Availability: In stock! Ready to ship.
Shipping Cost: US Shipping included! Int'l Shipping calculated at checkout

In-stock items are normally shipped within 24-48 hours on business days. For special handling or overnight shipping, please call us at 281-664-1209.


Manufacturer Information

Manufacturer: Amperor
Item Code: ANP90-48P1Y-277
