65W, 5.1V, 15V, -15V Open Frame Power Supply

AOF65-0303

65W, 5.1V, 15V, -15V Open Frame Power Supply
Processing...
AmperorDirect Price: $48.68

Standard US shipping included (We ship internationally daily)


Qty

Product Description

•••••

Description

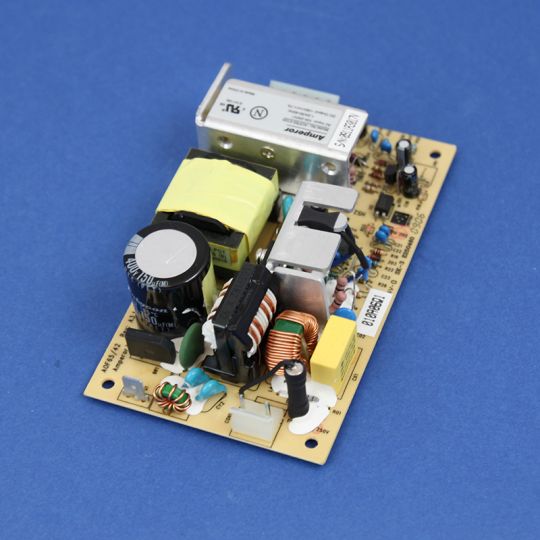

AOF65 series is Amperor's 65W, universal input, switching mode power supply. The AOF65 is built with industrial standard 3.0 " x 5.0" footprint and 1.2" height (1U application). It can be designed-in during the product development process or be used as a drop-in power supply replacement in various products, such as switches, routers, POS terminals, LCD projectors, cable / DSL modems, as well as PABX.



The multi-output (+5.1V, +15V, -15V) AOF65-0303 can pump out 60W full load output continuously in a convection cooled environment under 30 degrees C. With a 15 CFM. air flow, the AOF65-0303 can work in full load (60W) under 40 degrees C. The 5% voltage regulation rate and the low ripple and noise characteristics on the output make the power supply suitable for many noise sensitive applications. The power supply also comes with protection mechanisms, such as over-voltage, over-temperature and short-circuit protection. It is RoHS compliant, and is FCC, cUL, TUV and Nemco certified.



Features

  • Universal AC Input
  • Industry Standard 3.0 x 5.0" footprint for 1U application
  • 5% Voltage regulation Rate and Low Noise and Ripple on Output Channels
  • Good Thermal Performance
  • Built-in Protection Circuitry
  • Long MTBF
  • FCC, cUL, TUV and Nemco Certified



Specifications

  • Dimensions: 3.0 " (w) x 5.0" (l) x 1.2" (h)
  • Input voltage : 90 to 264VAC, 47 to 63 Hz
  • Efficiency: 75% (Typical)
  • Output#1: +5.1V @ 6A
  • Output#2: +15V @ 1.5A
  • Output#3: -15V @ 0.5A
  • Max. output power: 60W
  • Operating ambient : 0°c to 40°c
  • MTBF: 150,000 hours @ 25°c, 80% load
  • For PCB mounting holes drawing and other specifications, click here to see the detailed datasheet.



Inquiry for Bulk Buying or Custom Requests

AOF65 series open frame power supply can be configured to output different voltages. Please EMAIL AmperorDirect Support Team or call 281-664-1209 for details.



Go Back to Open Frame Product Table



Description

AOF65 series is Amperor's 65W, universal input, switching mode power supply. The AOF65 is built with industrial standard 3.0 " x 5.0" footprint and 1.2" height (1U application). It can be designed-in during the product development process or be used as a drop-in power supply replacement in various products, such as switches, routers, POS terminals, LCD projectors, cable / DSL modems, as well as PABX.



The multi-output (+5.1V, +15V, -15V) AOF65-0303 can pump out 60W full load output continuously in a convection cooled environment under 30 degrees C. With a 15 CFM. air flow, the AOF65-0303 can work in full load (60W) under 40 degrees C. The 5% voltage regulation rate and the low ripple and noise characteristics on the output make the power supply suitable for many noise sensitive applications. The power supply also comes with protection mechanisms, such as over-voltage, over-temperature and short-circuit protection. It is RoHS compliant, and is FCC, cUL, TUV and Nemco certified.



Features

  • Universal AC Input
  • Industry Standard 3.0 x 5.0" footprint for 1U application
  • 5% Voltage regulation Rate and Low Noise and Ripple on Output Channels
  • Good Thermal Performance
  • Built-in Protection Circuitry
  • Long MTBF
  • FCC, cUL, TUV and Nemco Certified



Specifications

  • Dimensions: 3.0 " (w) x 5.0" (l) x 1.2" (h)
  • Input voltage : 90 to 264VAC, 47 to 63 Hz
  • Efficiency: 75% (Typical)
  • Output#1: +5.1V @ 6A
  • Output#2: +15V @ 1.5A
  • Output#3: -15V @ 0.5A
  • Max. output power: 60W
  • Operating ambient : 0°c to 40°c
  • MTBF: 150,000 hours @ 25°c, 80% load
  • For PCB mounting holes drawing and other specifications, click here to see the detailed datasheet.



Inquiry for Bulk Buying or Custom Requests

AOF65 series open frame power supply can be configured to output different voltages. Please EMAIL AmperorDirect Support Team or call 281-664-1209 for details.



Go Back to Open Frame Product Table



Shipping Information

Shipping Weight: 1.00 Pounds
Availability: In stock! Ready to ship.
Shipping Cost: US Shipping included! Int'l Shipping calculated at checkout

In-stock items are normally shipped within 24-48 hours on business days. For special handling or overnight shipping, please call us at 281-664-1209.


Manufacturer Information

Manufacturer: Amperor
Item Code: AOF65-0303
