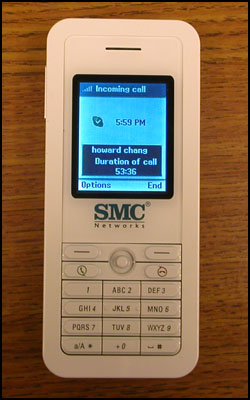

SMC WiFi Phone - Skype - WSKP100



Free Gift!

Buy an SMC WiFi phone today and we will include a FREE Skin protector. Do not let your $150 investment go to waste with dust and water, the protective skin provides protection of everyday wear and tear. Your choice of three colors, Blue, Pink, or Transparent:







AmperorDirect Skype VoIP Solution

The SMC WiFi (WSKP100) Skype Wi Fi phone introduces Skype users into a PC-free voice call setting. No longer are you tied to a computer to send and receive Skype phone calls. The next generation of Skype technology is here and it is hot!



Description

SMC introduces the new compact Wi-Fi Phone for Skype: WSKP100 for users who need mobility and cost effective voice calls over the Internet. The WSKP100 is intended to help users make Skype calls at home, work or campus without the hassle of having to turn on your computer.



The WSKP100 is based on the 802.11b/g standard so it is compatible with almost all standard Wi-Fi Access Points on the market. With the WSKP100 users can have access to both PSTN and Skype networks as long as users have a Skype account with the relevant services. Once configured, users will not have to remember the SSID or security of each AP as the WSKP100 can store this information and will connect automatically to the closest of your preferred wireless networks at startup.



With SMC’s WSKP100 users can enjoy the benefit of free calls within the Skype network, and cost effective using Skype’s paid services such as Skype In and Skype Out.



Mobility is enhanced with the WSKP100’s interface for making any configuration changes both quick and easy.



Benefits

Skype Software - With the embedded Skype software the WSKP100 can utilize almost all of Skype's functions such as conference calls, search through Skype's user base, voice mail, and even Skype In/Out services without turning on the PC.



Enhanced Power Saving - With an improved power-saving mechanism, the WSKP100 can be used for a relatively long period of standby and talk time. the WSKP100 is available wherever and whenever users need it.



IEEE Standard 802.11b/g Network - The WSKP100 will allow users to achieve mobility with the support of the 802.11b/g wireless standard. With the support of 802.11g the WSKP100 will not slow down network throughput while running in pure 802.11g wireless environment.



Exceptional QoS Function - With Quality of Service the WSKP100 will maintain exceptional quality in a shared wireless voice and data network by prioritizing voice traffic to have higher priority than data packets.



Wireless Network Security - The WSKP100 supports Wired Equivalent Privacy (WEP). The WEP the WSKP100 is designed to provide the same level of security as that of a wired LAN.



Features

Physical Connectors

• Mini USB connector
• Earphone jack

Display

• 1.8” CSTN LCD
• 65K color
• Resolution 128 x 160 Back light Screen

Network Features

• DHCP
• Static IP

Wireless Features

• 802.11b/g
• Site survey
• WEP 64/128-bit
• WPA/PSK
• WPA2/PSK

Voice Codec Features

• ITU G.729AB

Call Features

• Skype to Skype Calls
• Skype In/Out calls
• Skype voice mail
• Call Waiting
• Conference Call (Guest Only)
• Voice Mail
• Call History

Phone Features

• Contact list
• Online status
• Search for users on Skype index
• Add/remove user from contact list
• Quick Filter
• Skype Credit
• Profiles
• RF and Battery level indication

Application Features

• Time and date display
• Skype credit display

Management Features

• Firmware upgrade
  • PC client upgrade software through USB port
  • Upgrade Skype software through internet (Phase2)

Wireless Frequency

• IEEE 802.11b/g support
• Antenna: Omni Directional, 2.5dBi
• Frequency: 2.4-2.497GHz
• Channel: FCC 1~11, ETSI 1~13, Japan 1~14
• Data Rates: 54, 48, 36, 24, 18, 11.5, 5.5, 2, 1 Mbps
• RF Output: Power 13dBm

Dimension

• (W x H x D) 49 x 115 x 18 (mm)

Power Supply / Power Adapter

• 1200mAh Li-Ion Battery
  • Talk Time: 3 hrs (continuous)
  • Standby Time: 30 hrs
• AC adapter
  • AC power adaptor: 110~240 VAC, 50/60Hz
  • DC voltage Output: 5V

Environment Requirement

• The WSKP100 complies with the following standards:
• Temperature Range:
  • 0 to 40 degrees C (Standard Operating)
  • 20 to 70 degrees C (Non-operation)
• 13 channels (ETSI, Japan)

Emissions / Agency Approval / Safety

• USA
  • Safety - UL 60950-1 (UL)
  • EMI - FCC Part 15B
  • RF - FCC Part 15 C
  • SAR - OET65
• Europe
  • Safety - EN 60950-1 (TUV), IEC 60950-1 (CB)
  • EMC - EN55022, EN55024
  • RF - EN300 328, EN301 489-1-17
• Japan
  • EMI - VCCI
  • RF - Tele Std 55 (1~13 Channel)
  • Tele Std 33 (14 Channel)

Warranty

• 1 year

Ordering Information

• Model No.: WSKP100





Compatibility

WiFi	Skype





A Product with a Bright Future -- all it needs is some firmware updates

Click Here to read more information about the SMC WSKP100 Skype Wifi Phone

Product Review

A product with a bright future… Currently, the SMC Wi-Fi phone is a good phone for travelers who know where to find a Wi-Fi HotSpot that does not require a web browser in order to connect to the network.



The Wi-Fi stand-alone Skype phone is probably the most anticipated product within the Skype community. Skypers are hoping the PC-free and Wi-Fi functions will free them from their computers and finally reach the Skype promised land: “…talk to anyone, ANYWHERE, for free.”



Through our oversea department, we were able to get our hands on a non-beta, Asia release version of the SMC Skype Wi-Fi Phone. As written in our posting here:   http://www.amperordirect.com/pc/r-skype-news/z-news-08032006.html, all four Wi-Fi phones  that have been announced are using designs by Accton, therefore our preview of this phone should be fairly accurate in showing what you will see in the final US Skype Wi-Fi phone versions.



Items included in the box:

• One Skype Wi-Fi Phone (VM1185T)
• One Lithium-Ion Battery
• One White Headset
• One White Mini USB Cable
• One AC Power Charger (with Mini USB Output Tip)
• One Quick Installation Guide
• One User Guide CD



Installation – A True PC-less Experience:

With the skype software already being pre-installed, use of the phone is a breeze. The phone will automatically detect any available Wi-Fi networks, ask for the encryption key for the selected one - if necessary, connect to the selected network, and then prompt you for your Skype account information. After signing in, the phone will automatically grab your Skype contacts through the Wi-Fi network from Skype, then be ready for you to make a Skype call. The whole process is completed quickly, and without having to connect the phone to a computer at any time.



Control Interface:

The 1.5” x 1.25” LCD color display is at a comfortable light setting by default for indoor usage, but while still readable (at the highest light level), is not very clear while under the hot Houston sun.  The display also has a privacy feature in that it is best seen and read from while looking directly at it, but if you are someone trying to read the list from the side, you would not be able to see much on the screen.



The buttons on the keypad are well designed, in that the navigation stick can be used in 4-directions when you move it around, and pressing it straight in will act as a confirm.  This makes the navigation stick a very helpful tool for navigating around the different functions. The alpha-numeric buttons are built-in with enough feedback force and a loud touch tone for you to know when a button has been pressed. Except for the smaller button size than a normal phone, we had  no difficulties in using them.



Abundant Features:

Surprisingly, the phone comes with loads more features than we would expect to see from a first-generation Skype Wi-Fi phone. Some examples of what it can do includes:



• Displaying the Skype contact list with online/offline status.
• Saving the network encryption keys and Skype account ID and password for future use.
• Having call blocking and call forwarding features.
• Can store Skype voicemail, receive SkypeIn and make SkypeOut calls.
• Has three built-in ring-tones, and can be in silent or vibrate mode.
• Can also change network proxy settings and set up ports for Skype.



Voice Quality:

Before using for the first time, we highly recommend that the first thing done is to do a software update on the phone. This can be performed from Menu > Settings > General > Software Updates. The old software that comes with the phone will create a 1 sec delay in voice transmissions, while the latest version (V 1.0.0.0) will greatly reduce the delay.


The communication quality is acceptable, while occasionally we can hear short periods of voice distortion or silence - especially when the call is first connected. However, this is not much different than what sometimes happens with cell calls, too.  The distortion period is short enough that you sometimes notice it, but not enough for you to loose track of the conversation.



Known Issues:



Need a web browser:

First we used the phone in our office where we were able to connect to our Wi-Fi network with our normal connection settings provided by our network administrator.  Then, we took the phone on the road to try out in different Wi-Fi HotSpots. This is where we found our first problem for the phone: most HotSpot providers, such as T-Mobile and AT&T, need to initiate an account ID and password check through a web browser before the network will allow full connectivity. Because of the lack of a built-in web browser, there is currently no way to connect the phone to those types of HotSpots.



Need to fine-tune the mode transfer timing:

Our next problem came in the form of automatic volume control.  SMC needs to fine-tune the timing when transferring the phone from “ringing” mode into the “speaking” mode. For example, when the phone rings for an incoming call, the volume is automatically turned up very high to ensure that you can hear it from across the room, etc.  After you pick up the call, the phone is supposed to lower the volume to a non-ear-bleeding level for your conversation, but doesn’t seem to manage it until after the first couple of words have been exchanged.  When we called Skype echo123 testing center to try things out for the first time, the first incoming word (“Hello”) after the call was picked up was actually played at the same level as the ring-tone. The “Hello” was so loud that it hurt my ear!



Conclusion for today:

As a first-generation Wi-Fi phone, the sample we received exceeded our expectations. It is packed with loads of features, and provides acceptable sound quality. Furthermore, it deserves the PC-less title without a doubt. If the released US version can include a built-in web browser for paid Wi-Fi network connections, and can solve the volume timing issue we ran into, then it can finally free Skypers like us, from our computer.



Keep in touch. We’re going to test the battery capacity next and publish more thoughts about this phone as we continue to use it.



(Product ID: 10003/1.0.0.0/SMC. Software Version: V1.0.0.0. Software Date: 2006/06/21. Hardware version: R03)



SMC Wi-Fi Phone for Skype

The SMC WSKP100 Wi-Fi Phone for Skype extends the convenience of wireless connection and the voice quality of Skype into one portable device. The WSKP100 is intended to help users make Skype calls at home, workplace and campus without the hassle of turning on computers.



The modulation of WSKP100 is based on the IEEE802.11b/g standard so it is compatible with most standard 802.11b/g Access Point (AP) in the market. With the embedded Skype software, users can have access to both PSTN and Skype networks as long as users have a valid Skype account. With the easy startup user will not have to remember the SSID or security keys; the WSKP100 stores these information and will connect to AP automatically when it boots up.



The SMC WiFi Phone for Skype will deliver 3-hours continuous talk-time and 30-hour standby from its internal Li-Ion Battery and can be recharged from any USB enabled socket



With embedded Skype software, SMC Networks' Wi-Fi phone for Phone provides the users of cost savings, mobility with 802.11b/g WLAN, and hassle free installation with easy startup.



• Supports voice mail, SkypeIn and SkypeOut services
• Industrial standard 802.11b/g networks compatibility
• Exceptional Quality-of-Service (QoS) function to ensure high quality calls
• Supports Advanced Wireless Network security: WPA / WPA2 & WEP
• Over the Air (OTA) Upgrade
• 1 Year Warranty



Stand-by time

In order to test the stand-by time, we turned on the SMC Skype Wi-Fi phone at 10:00 in the morning and placed it about 30” away from our 802.11g D-Link Wi-Fi router in our office. The product spec says that the phone is designed with 30 Hrs of stand-by time, so we expect to catch the phone running out of battery power on the second day of testing around lunch time. However, when we got into the office at about 8:30am the next day, the battery on the phone had already been drained, showing that the stand-by time of the sample phone is less than 24 Hrs.



Talk time

We used the following testing setup to test the talk time of the SMC Skype Wi-Fi phone.



• We called the SMC Skype Wi-Fi phone from a computer, and used Pretty May to play non-stop background music to simulate a conversation.
• We occasionally talked on the phone to activate the microphone.
• The SMC Skype Wi-fi phone was placed about 30” away from our 802.11g Wi-Fi router.
• The phone was set at the default volume (3 bars).



The above setup is doing more of testing the battery performance in extreme usage than on-again/off-again calls. Streaming music by Wi-Fi definitely consumes more power than transmitting a normal conversation because the silence that happens in a normal conversation would not be happening in the music streaming. However, the test should still give us a feeling of about how the battery performance should be in the final released phone.



The phone was put in this non-stop talk mode which lasted for 3.5 Hrs before the battery ran down.



During the test, we also noticed several interesting things:



• The LCD display can turn itself off during the conversation. This is a good power-saving feature that helps in saving some juice.
• During the conversation, we can active two functions: hold the phone and mute the microphone. We have not found a way to show the remaining battery capacity on the screen during a conversation.
• After 30 minutes of non-stop use, the phone became a little warm.
• This phone does a good job of keeping the Wi-Fi connection. In the entire 3.5 hour testing period, the phone only dropped the connection once.



Conclusion for today



The battery life on the SMC Skype Wi-Fi phone sample we have did work close to the manufacturer’s specs. As we all know, to broadcast over Wi-Fi – just like a cell phone over a cell network - the transmitter consumes a lot of power. People who want to use this phone should understand that they need to perform a re-charge to the phone daily.

Wish list

Must have:

• Built-in web browsers - In order to connect to most HotSpots available in US, offering a built-in web browser is a must.
• Display Battery life during a conversation - A battery capacity bar shown on the screen during the talk time would be very helpful in avoiding sudden power outage.



Desired features:

• Desktop recharge cradle - Since the phone needs to be recharged every day, a desktop recharge cradle would ease the hassle in finding the AC adapter each time and help reduce cable clutter.
• Carrying pouch / accessory - This phone is designed for people on the move. We wish we can find a carrying pouch to protect and easily take this phone with us.
• Car charger / accessory - Again, this phone is for people on the move. A way to charge the phone in the car would be a big help.
• Longer battery life (48 Hrs standby time, 6~8 Hrs talk time) - We hope the phone can match the basic battery capacity standard of a cell phone.
• Portable battery / emergency charge accessory - If the Wi-Fi transmitter power consumption cannot be improved in the near future, a portable battery or emergency charge accessory is needed.
• Bluetooth enabled - If we can use a Bluetooth headset with the phone, it would be easier to move around. However, we also know that Bluetooth technology is another power hog, too.
