HDX-BD1 Product Overview

Introducing the HDX-BD1 – a worthy successor to the popular and MPC Best Value rated HDX-1000. Building on the strengths of the previous generation, the newest model features a number of key improvements and is still the ultimate all-in-one solution for streaming all of your stored digital content on the big screen TV at up to 1080p full-HD resolutions.



With a new Sigma Designs SMP8642 chip running at 667MHz with floating point coprocessor and 1GB of internal flash memory, the HDX-BD1 streams your stored movies, music, pictures and documents with ease. Dressed in a full aluminum casing, the player sports a brushed finish and is sure to please the eye. In a study of form follows function, the 100% aluminum enclosure not only looks great but also serves as an efficient heat sink. The passive thermal management allows the player to operate with 0dB inherent noise output, a critical but often overlooked characteristic in home theater components.



The professional design is consistent throughout the product, from the color-matched remote to the newly revamped and highly user-friendly Voir interface. Here’s a quick overview of a few key features:



Full 1080p Resolution

The gold-plated HDMI v1.3a connector enables the display of 1080p content in all its glory. The long compatibility list includes playback of .mkv and .mov formatted media files and H.264 video codec.

Blu-ray Compatible

Retail Blu-ray and DVD discs can be read from an external drive, using either USB 2.0 or eSATA connections. Full Blu-ray structures are also supported, either streamed over the network or from internal/external hard drive.

User-Friendly Interface via HDX Voir

The graphical menus are both minimalist and beautiful at the same time. The start-up menu presents six floating icons set against a deep black background, providing direct access to an external BD/DVD drive, internal hard drive, LAN network, USB drive, settings and web browser.

Web Browsing

HDX-BD1 supports basic internet browsing with wireless Bluetooth desktop capability. Also works with USB wired and wireless keyboard and mouse combos. Now you can search the internet, view your favorite websites, email, Facebook, etc. all from the comfort of your living room couch!

BitTorrent and UseNet Client

Operates as a standalone BitTorrent or Usenet downloader. You can run this concurrently with your PC – it’s like having an extra computer in the home to download torrents 24/7.

Easy Hard Drive Installation

This is a huge improvement over the previous model where you had to fuss with unscrewing the bottom cover. Instead, just slide one of the side panels open, fit a 3.5” HDD into the bay, connect the cables, close the panel and you’re done!



Call us at 281-664-1209 if you need any detailed explanation.





Package Includes

• HDX-BD1 main machine
• Remote
• HDMI cable
• AC power adapter
• 4pcs rubber stand pad
• A paper user manual



Hardware Specifications

Chipset:

• Sigma Designs SMP8642, 667MHz CPU with floating point coprocessor.

Memory:

• 512MBytes DDR2 DRAM
• 256MBytes NAND Flash
• 1GB internal flash drive (for BDLive or other content)

Audio/Video Outputs:

• HDMI v1.3a supports deep color and true HD audio enjoyment
• Component Video
• Composite Video
• Stereo Analog Audio
• S/PDIF Optical and Coaxial Digital Audio

Interface:

• Power button via remote with standby and reset button
• 2x USB 2.0 host in the back
• 1x SATA (one occupied by HDD tray)
• 1x eSATA (for external HDD or BD Rom Connectivity)
• 3.5" HDD tray

Network:

• Gigabit Ready LAN adapter

Power:

• 100~240V AC, 50~60 Hz, max 2.5A usual power consumption
• 10 W (no device connected)
• maximum power consumption: 36 W

Footprint:

• Width x Depth x Height : 170mm x160mm x 50mm (6.69" x 6.29" x 1.96")

Weight:

• 1kg (2lbs 2oz)



Software Specifications

Connectivity:

• Bonjour, UPnP SSDP, UPnP AV, Windows Media Connect, Windows Media Player NSS, Samba, NFS
• UPNP Media Servers: TVersity, Twonkymedia
• BitTorrent P2P
• Usenet downloader
• NAS Access : SMB, NFS, FTP

Video containers:

• MPEG1/2/4 Elementary (M1V, M2V, M4V)
• MPEG1/2 PS (M2P, MPG, DAT, VOB)
• MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS)
• AVI, ASF, WMV
• Matroska (MKV)
• MOV (H.264), MP4
• AVS

Video Decoders:

• XVID SD/HD
• MPEG-1
• MPEG-2 MP@HL
• MPEG-4.2 ASP@L5, 720p, 1-point GMC
• MPEG-4.10 (H.264) : BP@L3, MP@L4.0, HP@L4.0, HP@L4.1
• WMV9 : MP@HL
• SMPTE 421M (VC-1) : MP@HL, AP@L3

Audio Containers:

• AAC, M4A, MPEG audio (MP1, MP2, MP3, MPA), WAV, WMA, FLAC, OGG, APE

Audio Decoders:

• Dolby Digital, DTS, WMA, WMA Pro, MPEG-1 Layer 1, 2, 3, MPEG-4 AAC-LC, MPEG-4 HE-AAC, MPEG-4 BSAC, LPCM, FLAC, Vorbis

Audio Pass-Through:

• DTS, DTS-HD HR, DTS-HD MA
• Dolby Digital, Dolby Digital Plus, Dolby True HD

Other Formats:

• ISO, IFO navigation
• AVCHD navigation
• Blu-ray ready (requires addition of compatible external BD-ROM)

Photo Formats:

• JPEG, BMP, PNG, GIF, TIFF

Subtitle Formats:

• SRT, MicroDVD SUB, SSA, SUB/IDX






Resources

• Important things you need to know before buying HDX-BD1
• HDX-BD1 Information Pack (1.41MB)





Picture Gallery

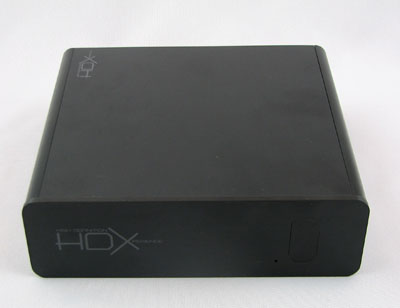

HDX-BD1 Front View

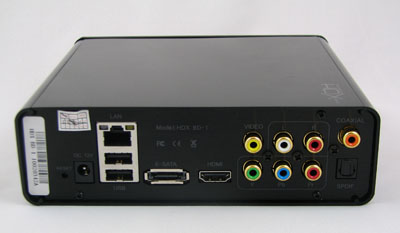

HDX-BD1 Back View

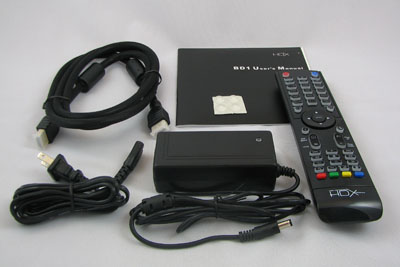

HDX-BD1 Accessories Pack

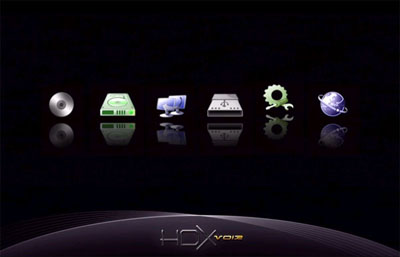

HDX-BD1 User Interface: HDX Voir

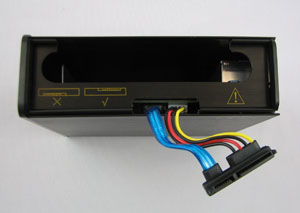

HDX-BD1 Internal HDD Tray
