Holter ECG Monitor Dicare-m1C

Holter ECG Monitor Dicare-m1C
Processing...
AmperorDirect Price: $178.88

Standard US shipping included (We ship internationally daily)


Qty

Product Description

•••••

DiCare-mlC Ambulatory Holter ECG Monitor is an intelligent, reliable and easy-to-use ECG recorder/monitor. The monitor is compact and users can wear it for recording and monitoring their ECG and heart rate anywhere anytime. The data can be saved to a SD card for referencing later on a computer. This would capture any heart palpitations and other unusual episodes. Since these episodes do not occur regularly, recording them would assist your doctor to make a diagnosis and you to monitor your own conditions.

The Ambulatory ECG Recorder has four operation modes with different objectives.

  • Quick Recording Mode: Take ECG measurement using the electrodes on DiCare m1C unit for a short interval (up to 48 seconds). Data is automatically stored to the SD card. This mode is for spot checking.
  • Holter Recording Mode: Take ECG measurement continuously using the ECG cable and electrodes for up to 32 hours. User can mark the time during recording to tag special events. Data is automatically stored to the SD card. This mode is for continuous recording.
  • Event Recording Mode: Record ECG measurement for an interval up to 8 minutes long whenever a button is pressed. This mode is for recording special episodes.
  • Monitor Recording Mode: Take ECG measurement continuously using the ECG cable for up to 24 hours. This is similar to the Holter mode except that an alarm would sound if the heart rate exceeds a threshold. Recording is not enabled by default. This mode is for continuous monitoring.

A patient with cardiovascular problem should can take measurements regularly and frequently to monitor his own health and show any unusual results to his doctor. Found out what your normal ECG and heart rate would be. Any deviation is cause for concern.

DiCare-mlC Holter ECG Monitor comes with PC software reporting and data management. It helps you to compare the ECG waveforms against the normal ones.

Heart attack symptoms, e.g. chest pain, out of breath, and irregular heart rate, can occur anytime and may not happen while the patient is being examined by his doctor. The patient can take a reading using the Micro Ambulatory ECG Monitor and then show the data to a doctor for analysis. Take a EKG measurement when the patient is experiencing a problem or continuously through out the day is the best way to capture the event.

Analysis screen

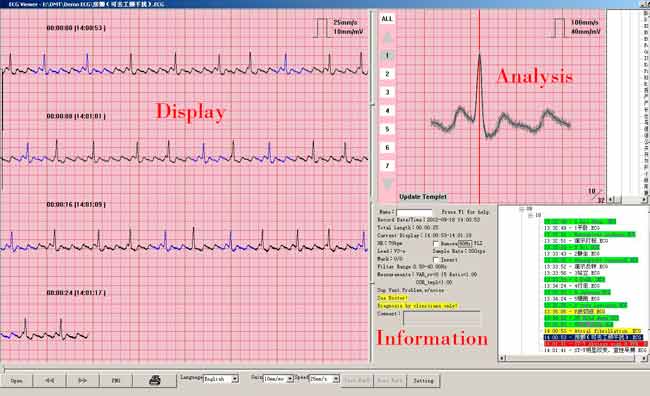

The analysis screen shown below is the primary means of reporting. It consists of multiple regions, including ECG waveform display region, P-QRS-T analysis region, and ECG recording information region.

analysis screen

The ECG waveform display region shows the ECG waveforms being examined. It is at the left side of the window and generally contains four lines of ECG waves.

The P-QRS-T analysis region at the upper right of the screen shows how the ECG displayed is compared with an ECG template, which should be your "normal" ECG.

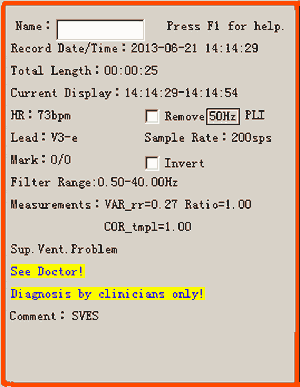

The ECG recording information region is at the lower right of the screen and shows various information related to the measurements. The information is for reference only, not for self-diagnosis. Consult your doctor and do not make any assumptions. See Home ECG on how to best use the information provided.

Dicare-m1C information region

The above screen is from a patient with atrial fibrillation. For more sample screens, see the support page.

Specifications

  • Alarm: Heart rate (in monitoring mode only)
  • Recording time: Up to 32 hours depending on operating mode
  • Operating modes: Continuous (Holter), quick recording (up to 48 seconds), event monitoring (up to 8 minutes)
  • ECG signal bandwidth: 0.05Hz - 150Hz
  • Sampling rate: 100/200/400 samples per second
  • Configurable band pass filter
  • Input signal dynamic range: > 100 dB.
  • ECG display speed: 2.5-100mm/sec.
  • Power: Two AAA alkaline batteries, up to 32 hours of usage (with screen off).
  • Weight: 85g including 2 AAA batteries
  • Dimension: 90x60x16 mm

DiCare-mlC Ambulatory Holter ECG Monitor is an intelligent, reliable and easy-to-use ECG recorder/monitor. The monitor is compact and users can wear it for recording and monitoring their ECG and heart rate anywhere anytime. The data can be saved to a SD card for referencing later on a computer. This would capture any heart palpitations and other unusual episodes. Since these episodes do not occur regularly, recording them would assist your doctor to make a diagnosis and you to monitor your own conditions.

The Ambulatory ECG Recorder has four operation modes with different objectives.

  • Quick Recording Mode: Take ECG measurement using the electrodes on DiCare m1C unit for a short interval (up to 48 seconds). Data is automatically stored to the SD card. This mode is for spot checking.
  • Holter Recording Mode: Take ECG measurement continuously using the ECG cable and electrodes for up to 32 hours. User can mark the time during recording to tag special events. Data is automatically stored to the SD card. This mode is for continuous recording.
  • Event Recording Mode: Record ECG measurement for an interval up to 8 minutes long whenever a button is pressed. This mode is for recording special episodes.
  • Monitor Recording Mode: Take ECG measurement continuously using the ECG cable for up to 24 hours. This is similar to the Holter mode except that an alarm would sound if the heart rate exceeds a threshold. Recording is not enabled by default. This mode is for continuous monitoring.

A patient with cardiovascular problem should can take measurements regularly and frequently to monitor his own health and show any unusual results to his doctor. Found out what your normal ECG and heart rate would be. Any deviation is cause for concern.

DiCare-mlC Holter ECG Monitor comes with PC software reporting and data management. It helps you to compare the ECG waveforms against the normal ones.

Heart attack symptoms, e.g. chest pain, out of breath, and irregular heart rate, can occur anytime and may not happen while the patient is being examined by his doctor. The patient can take a reading using the Micro Ambulatory ECG Monitor and then show the data to a doctor for analysis. Take a EKG measurement when the patient is experiencing a problem or continuously through out the day is the best way to capture the event.

Analysis screen

The analysis screen shown below is the primary means of reporting. It consists of multiple regions, including ECG waveform display region, P-QRS-T analysis region, and ECG recording information region.

analysis screen

The ECG waveform display region shows the ECG waveforms being examined. It is at the left side of the window and generally contains four lines of ECG waves.

The P-QRS-T analysis region at the upper right of the screen shows how the ECG displayed is compared with an ECG template, which should be your "normal" ECG.

The ECG recording information region is at the lower right of the screen and shows various information related to the measurements. The information is for reference only, not for self-diagnosis. Consult your doctor and do not make any assumptions. See Home ECG on how to best use the information provided.

Dicare-m1C information region

The above screen is from a patient with atrial fibrillation. For more sample screens, see the support page.

Specifications

  • Alarm: Heart rate (in monitoring mode only)
  • Recording time: Up to 32 hours depending on operating mode
  • Operating modes: Continuous (Holter), quick recording (up to 48 seconds), event monitoring (up to 8 minutes)
  • ECG signal bandwidth: 0.05Hz - 150Hz
  • Sampling rate: 100/200/400 samples per second
  • Configurable band pass filter
  • Input signal dynamic range: > 100 dB.
  • ECG display speed: 2.5-100mm/sec.
  • Power: Two AAA alkaline batteries, up to 32 hours of usage (with screen off).
  • Weight: 85g including 2 AAA batteries
  • Dimension: 90x60x16 mm

Shipping Information

Shipping Weight: 0.75 Pounds
Availability: In stock! Ready to ship.
Shipping Cost: US Shipping included! Int'l Shipping calculated at checkout

In-stock items are normally shipped within 24-48 hours on business days. For special handling or overnight shipping, please call us at 281-664-1209.


Manufacturer Information

Manufacturer:
Item Code: DICARE-M1C
