Choice Pulse Oximeter Sensor M50 - Product Description

Appearance & Measurement Principle

The adult sensor (small size) is for the person who is older than 12 years old; the pediatric sensor is for children whose age is between three and twelve years old.

Adult small sensor

Pediatric Sensor

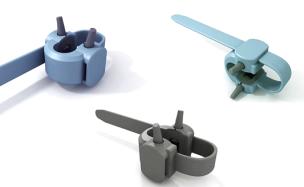

Wrap Sensor (detachable & un-detachable)

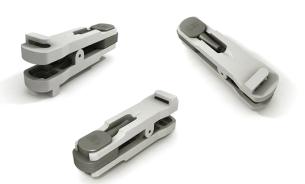

Ear Sensor

Adult Sensor (standard size)

Adult Soft finger Sensor

Pediatric Soft finger Sensor

The principle of the Sensor rely on the property of spectrum which collect data from hemoglobin and oxyhemoglobin in glow area and area of approximate infrared source and apply the formular “Lamnert Beer” to establish the evaluating equation. In fact, the basic calculating technique is to combine electro-photo SPO2 detecting technology with recording mock pulse rate technology to get the result, the process demonstrate as below:

Firstly, use glow with wavelength of 660 nm and approximate infrared with wavelength of 905 nm to put light on the finger tip ready to read analogue data.

Secondly, to process the data by electric circuit and microprocessor, then convey the data to LED display for reading.

Diagram of Operation Principle

1. Red and Infrared-ray Emission Tube
2. Red and Infrared-ray Receipt Tube
